Product Overview

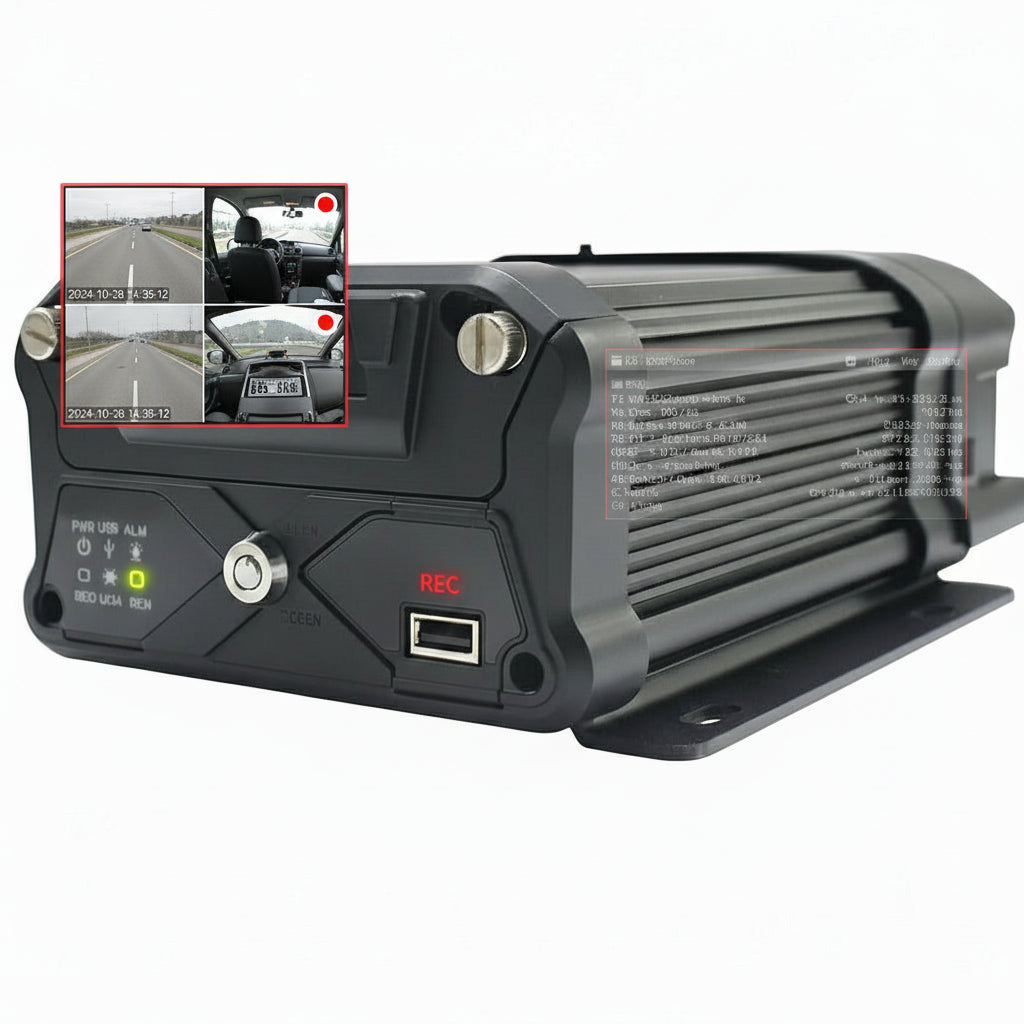

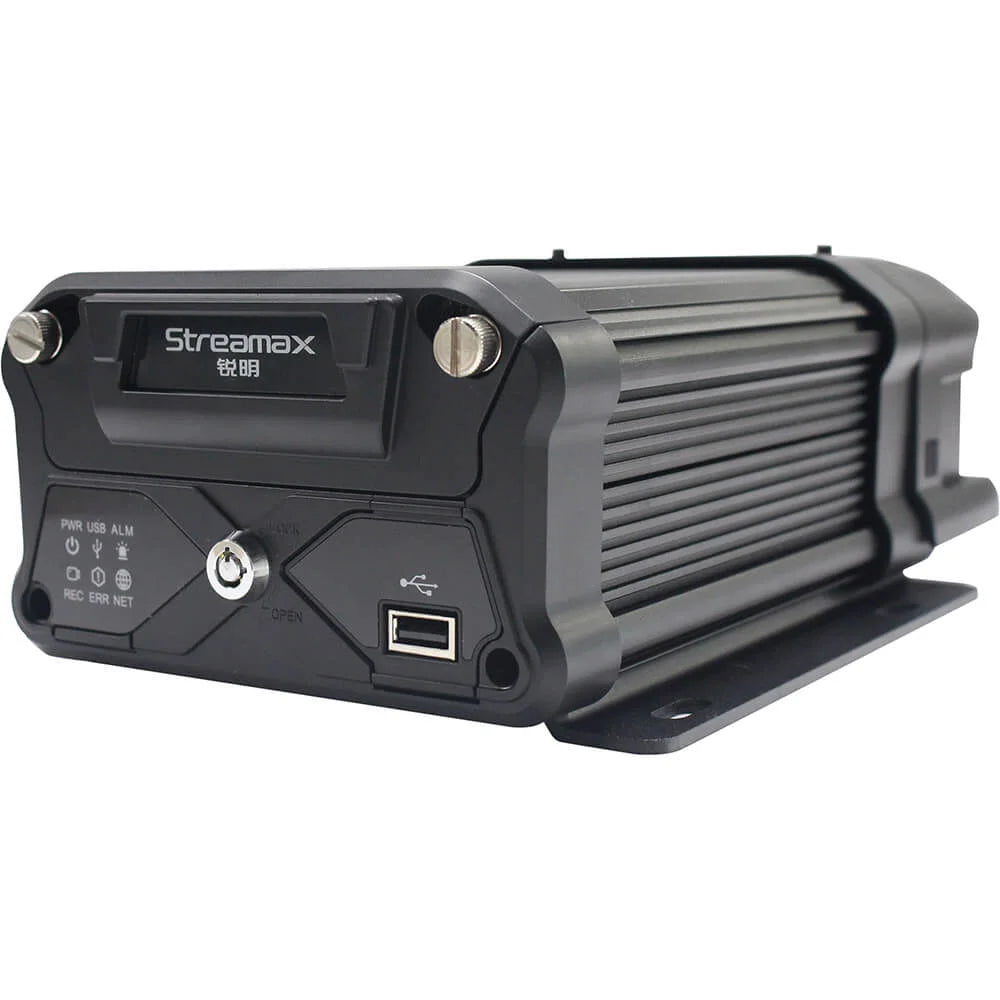

The Streamax X3N 8-Channel Mobile DVR is the ultimate surveillance solution for modern fleets, offering a perfect balance of performance, reliability, and versatility. Integrating 4 IPC cameras with 4 AHD cameras, it provides full vehicle coverage, capturing every angle with precision and clarity.
Designed for the rigours of mobile applications, the X3N DVR ensures continuous recording, robust storage, and seamless remote access, enabling fleet managers to monitor vehicles in real time, protect assets, and improve operational efficiency.
With dual storage capability via SD card and HDD/SSD, coupled with advanced H.265 compression, the device stores high-definition video for extended periods without sacrificing quality. Its rugged design withstands vibration, shocks, and extreme temperatures, making it ideal for buses, lorries, taxis, and logistics fleets.
Whether your goal is driver safety, cargo protection, or regulatory compliance, the Streamax X3N DVR provides professional-grade surveillance, paired with user-friendly management software for effortless monitoring and playback.
-
8-Channel Input – 4 IPC + 4 AHD cameras for complete vehicle coverage
-
High-Definition Recording – up to 1080p for AHD and up to 4MP for IPC cameras
-
Dual Storage Options – SD card plus HDD/SSD for extended retention
-
Remote Monitoring – access live video streams via mobile or desktop applications
-
Event-Triggered Alerts – motion detection, ignition start, and alarm inputs
-
Durable Mobile-Grade Design – vibration-resistant and temperature-tolerant
-
Advanced Compression Technology – H.265/H.264 for efficient storage management
-
Plug-and-Play Setup – rapid integration of both IPC and AHD cameras
Technical Specifications
Specification Details Channels 8 (4 IPC + 4 AHD) Video Input Resolution IPC: Up to 4MP / AHD: Up to 1080p Compression H.265 / H.264 Storage SD Card (up to 256 GB), HDD/SSD supported Network Optional 4G/LTE, Ethernet for remote access Video Output HDMI, VGA, optional AV output Power Supply 10–30 V DC (vehicle standard) Operating Temperature –20 °C to +70 °C Shock & Vibration Mobile-grade durability Dimensions 210 × 180 × 50 mm Weight ~1.2 kg Event Support Motion detection, ignition trigger, alarm input
This Dvr required 1 SD card and 1hard disk. *
*Charges apply.
