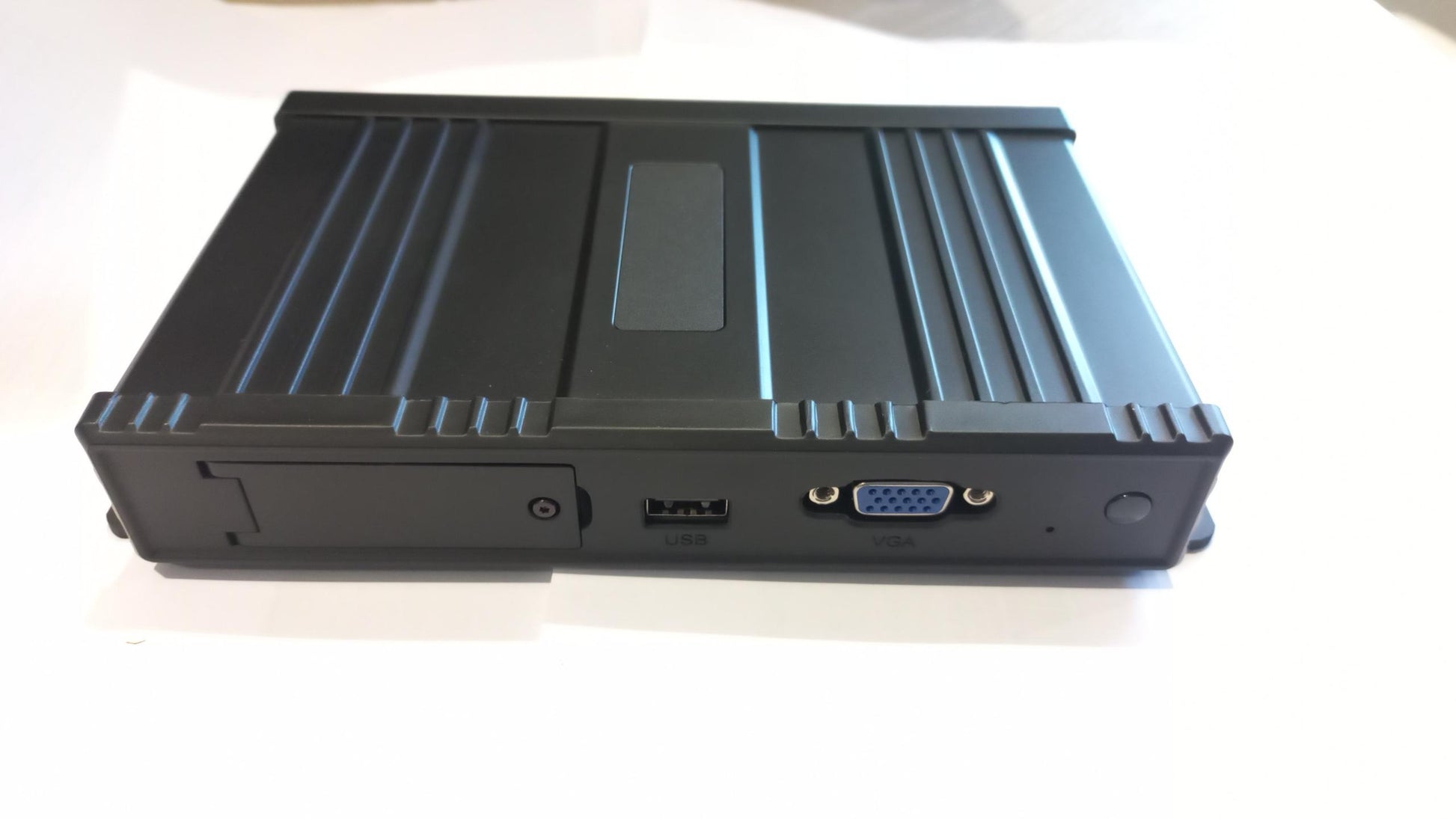

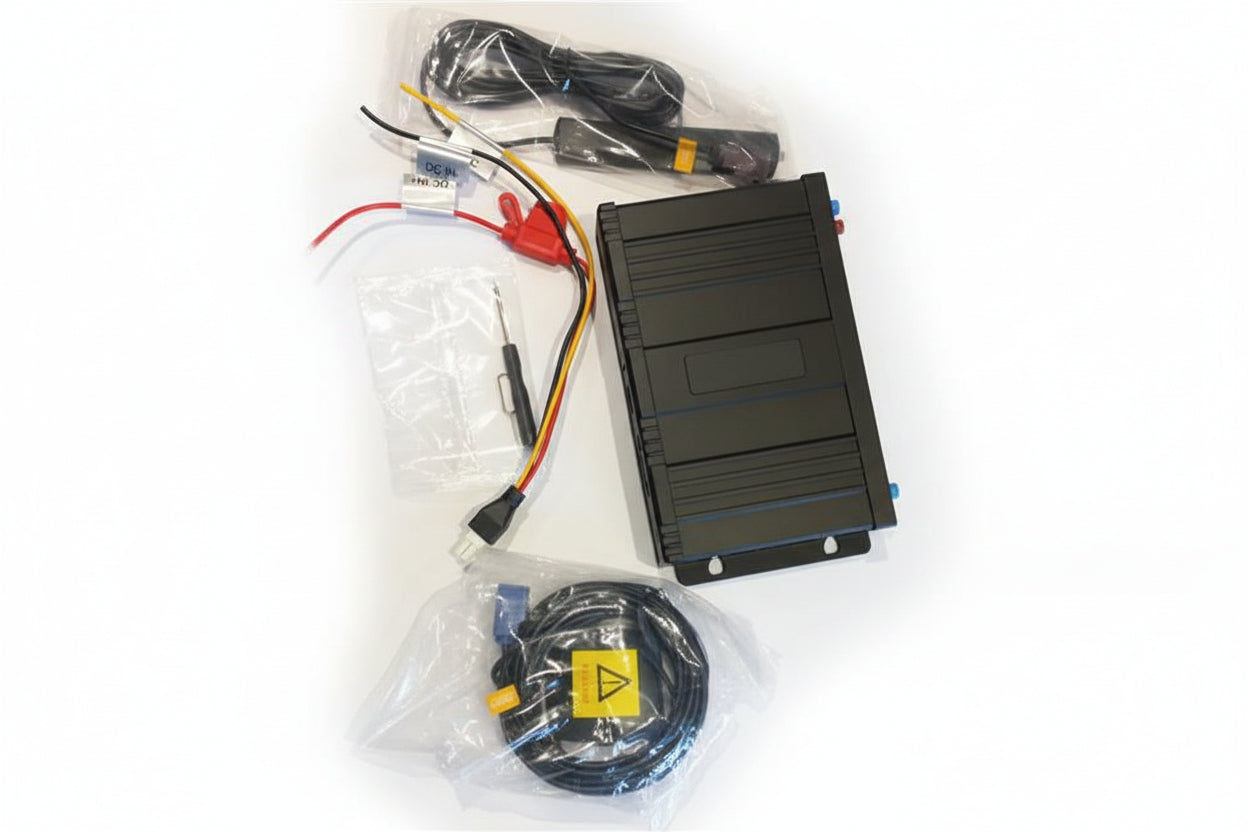

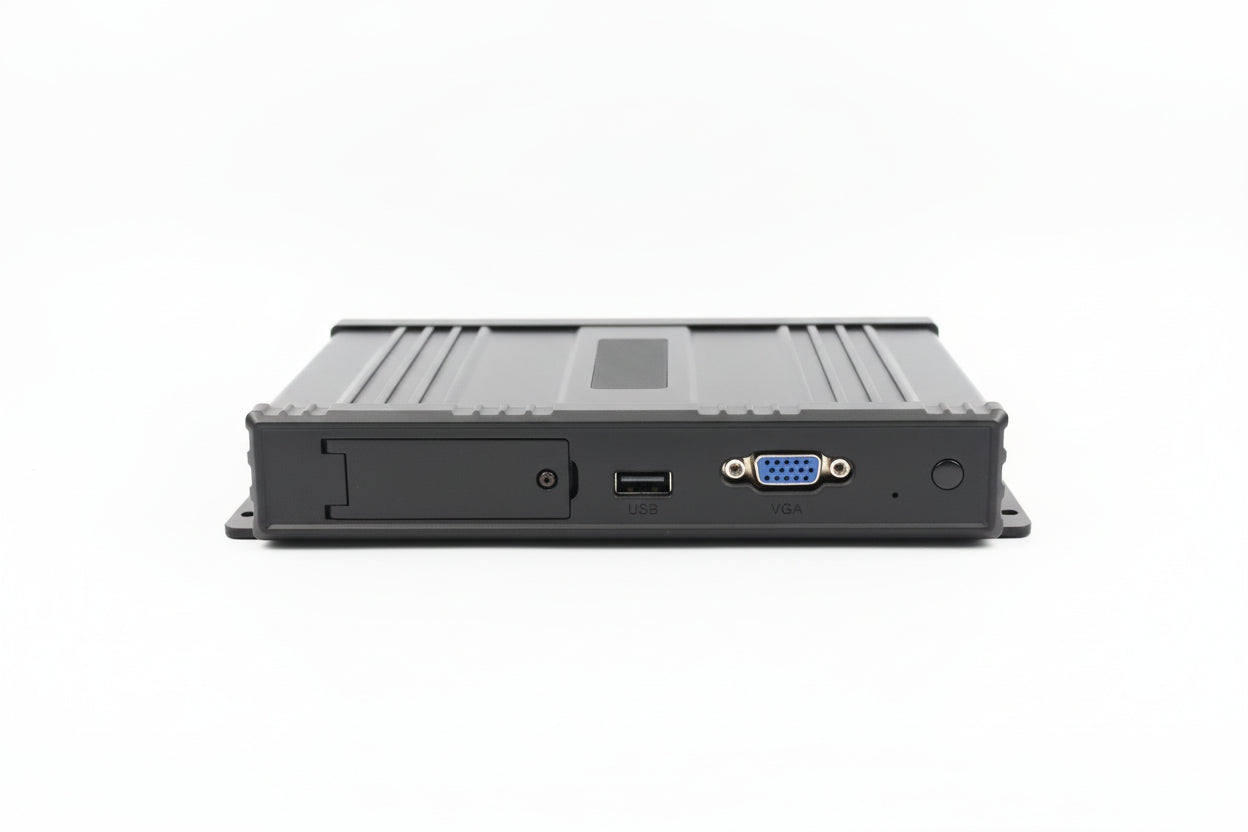

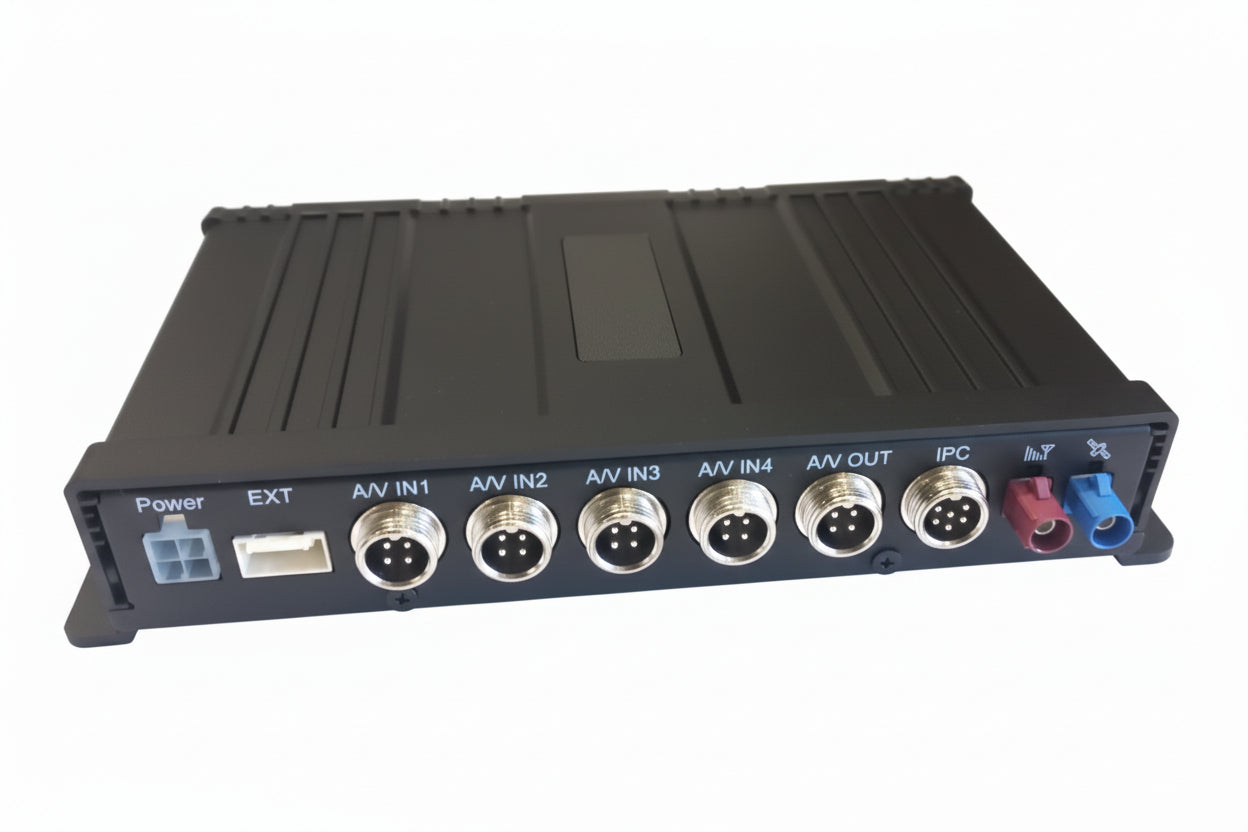

5 Channel Mobile DVR (MDVR) with GPS & 4G Telematics for Fleet Safety

The FTMD-F5N-5CH Mobile DVR is a powerful 5-channel MDVR system designed for advanced fleet safety, vehicle surveillance, and telematics integration. Built for commercial vehicles such as trucks, buses, taxis, and vans, this unit enables real-time video monitoring, GPS tracking, and 4G remote access.

With support for multiple cameras, the system provides full vehicle coverage including front, rear, side, and cabin views, helping improve driver behavior, reduce incidents, and enhance operational efficiency.

The rugged design ensures reliable performance in harsh environments, making it ideal for fleet operators looking for secure and scalable vehicle CCTV solutions.

Key Features

• 🎥 Supports up to 5 camera channels (AHD/Analog/IP compatible)

• 📡 Built-in GPS tracking for real-time vehicle location

• 🌐 4G/WiFi remote monitoring & live streaming

• 💾 Supports HDD/SSD storage (up to 2TB typical)

• 🔒 Advanced video compression (H.264 / H.265)

• 🚚 Designed for fleet vehicles (HGV, bus, taxi, van)

• 📊 Telematics integration for fleet management systems

• ⚡ Power protection & wide voltage support

• 📁 Event recording (braking, impact, overspeed alerts)

Technical Specifications

• Channels: 5CH Video Input

• Video System: AHD / Analog / IPC Hybrid

• Resolution: Up to 1080P

• Compression: H.264 / H.265

• Storage: 1 x HDD/SSD (up to 2TB) + SD card backup

• GPS: Built-in

• Network: 4G LTE / WiFi (optional)

• USB Ports: Yes

• Video Output: VGA / CVBS

• Power Supply: DC 8V–36V

• Operating Temperature: -20°C to +70°C

• Alarm Inputs/Outputs: Supported
