H5-5CH-DIN – AI Enabled 5CH Mobile DVR (4×AHD + 1×IPC) with 4G GPS Telematics

The FTMD-H5-5CH-DIN AI Mobile DVR is a next-generation 5-channel fleet surveillance and telematics system, designed for modern commercial vehicles. Supporting 4 AHD cameras and 1 IP camera, this hybrid MDVR delivers superior flexibility and intelligent monitoring.

With built-in AI capabilities, the system enhances fleet safety through features such as driver behaviour monitoring (DMS) and advanced driver assistance systems (ADAS). Combined with 4G connectivity and GPS tracking, fleet managers gain real-time access to live video, vehicle location, and critical alerts.

The DIN mount design allows seamless integration into dashboards, making it ideal for buses, coaches, taxis, and fleet vehicles requiring a clean, OEM-style installation.

Key Features

• 🤖 AI-enabled MDVR (ADAS + DMS support)

• 🎥 5 Channel Hybrid: 4×AHD + 1×IPC (IP Camera)

• 📡 Real-time GPS tracking & route playback

• 🌐 4G remote access with live video streaming

• 🚗 Driver monitoring alerts (fatigue, distraction, phone use)

• ⚠️ ADAS alerts (lane departure, forward collision warning)

• 💾 Supports HDD/SSD storage (up to 2TB typical)

• 🔒 H.265 video compression for efficient storage

• 🧩 DIN mount design for professional dashboard installation

• ⚡ Wide voltage support for all vehicle types

Technical Specifications

• Channels: 5CH (4×AHD + 1×IPC)

• Video Resolution: Up to 1080P

• Compression: H.264 / H.265

• Storage: 1× HDD/SSD (up to 2TB) + SD backup

• AI Functions: ADAS / DMS compatible

• GPS: Built-in

• Network: 4G LTE / WiFi (optional)

• Video Output: VGA / CVBS

• USB: Yes

• Power Input: DC 8V–36V

• Operating Temp: -20°C to +70°C

Use an image showing:

• DIN-style MDVR unit

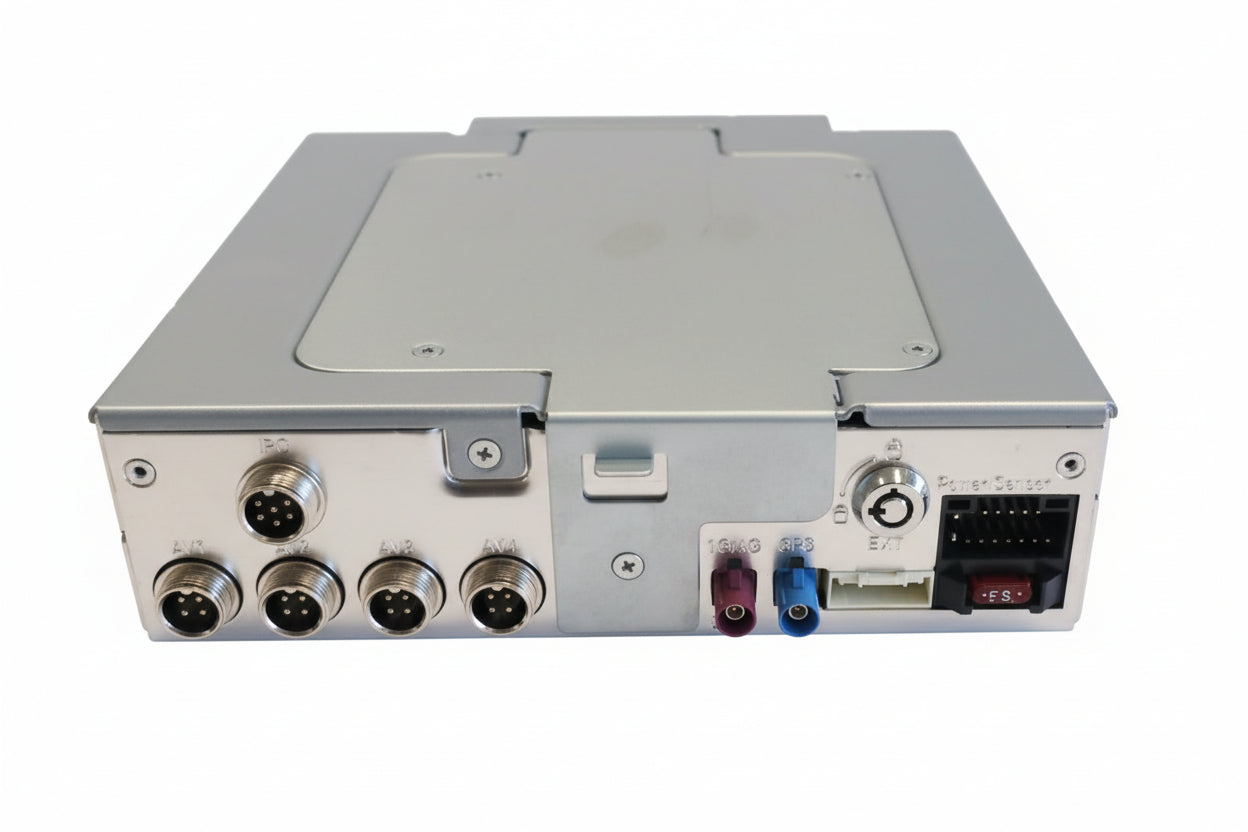

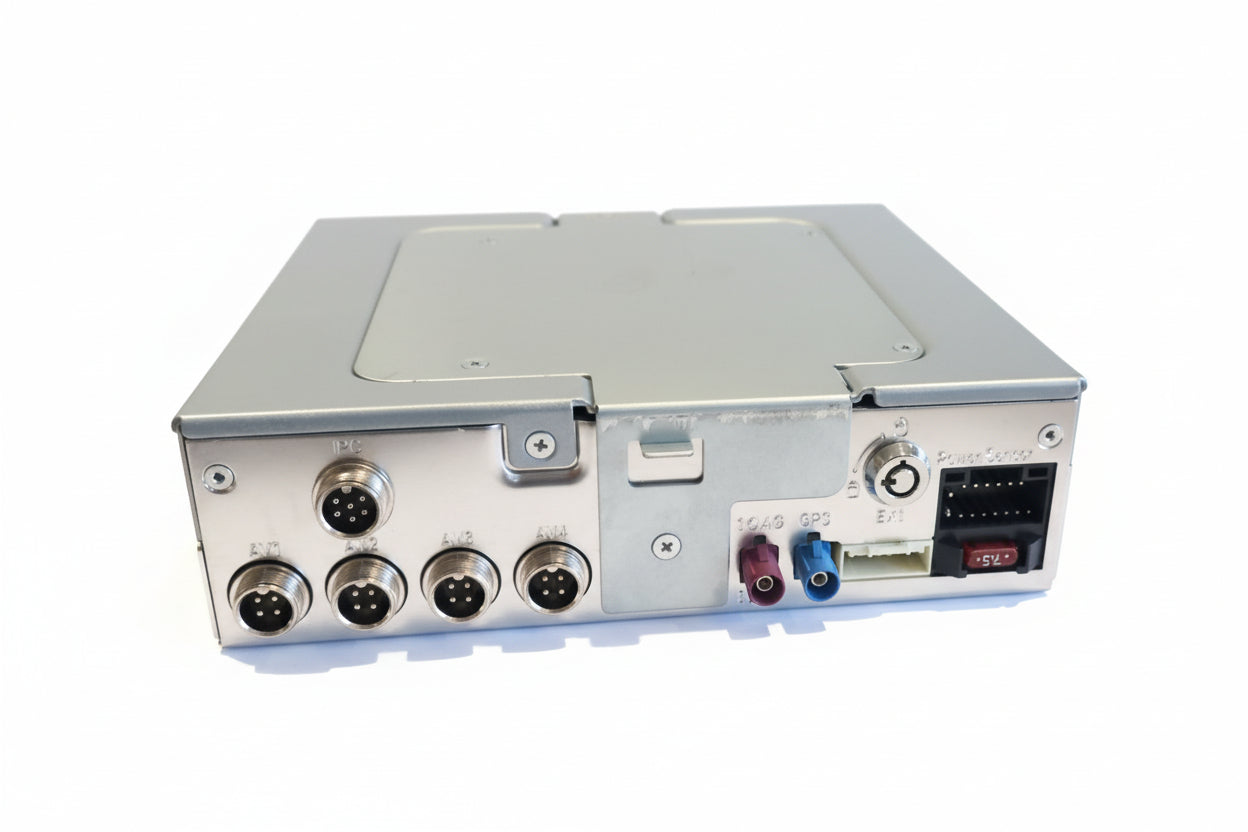

• Aviation connectors (4-pin AHD inputs)

• SIM card slot (4G)

• GPS & antenna ports

• Metal rugged casing with heat dissipation

• Product Type: AI Mobile DVR (MDVR)

• Channels: 5CH Hybrid

• Camera Support: 4×AHD + 1×IPC

• AI Features: ADAS / DMS

• Connectivity: 4G LTE / GPS

• Mounting: DIN

• Use Case: Fleet Safety / Smart Telematics
