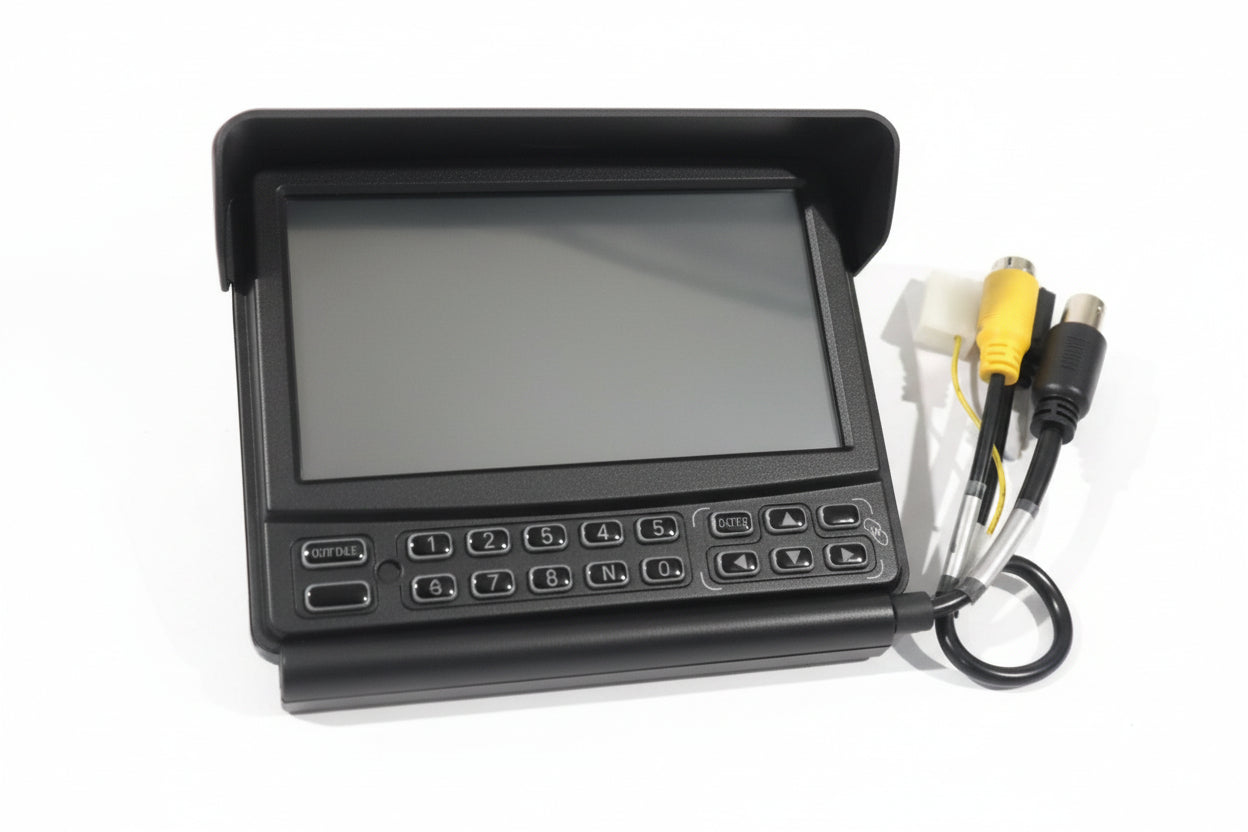

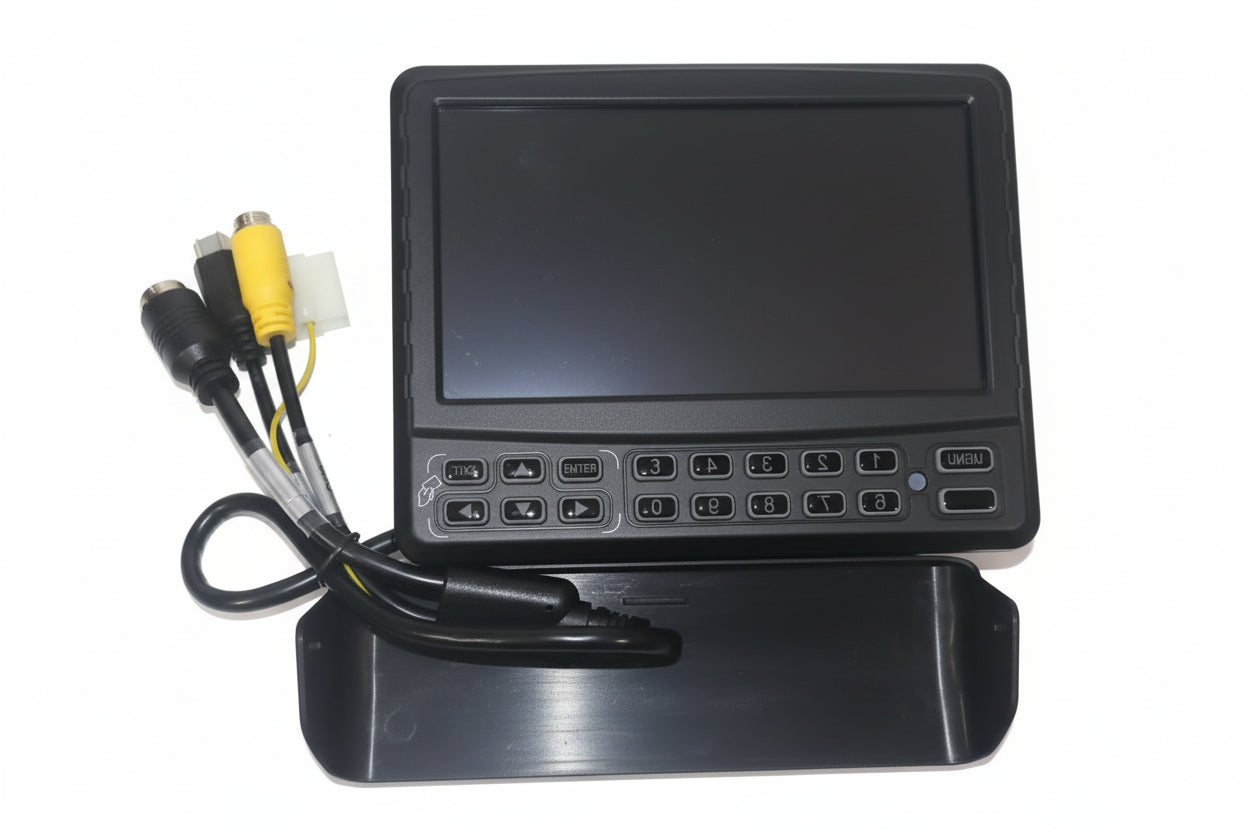

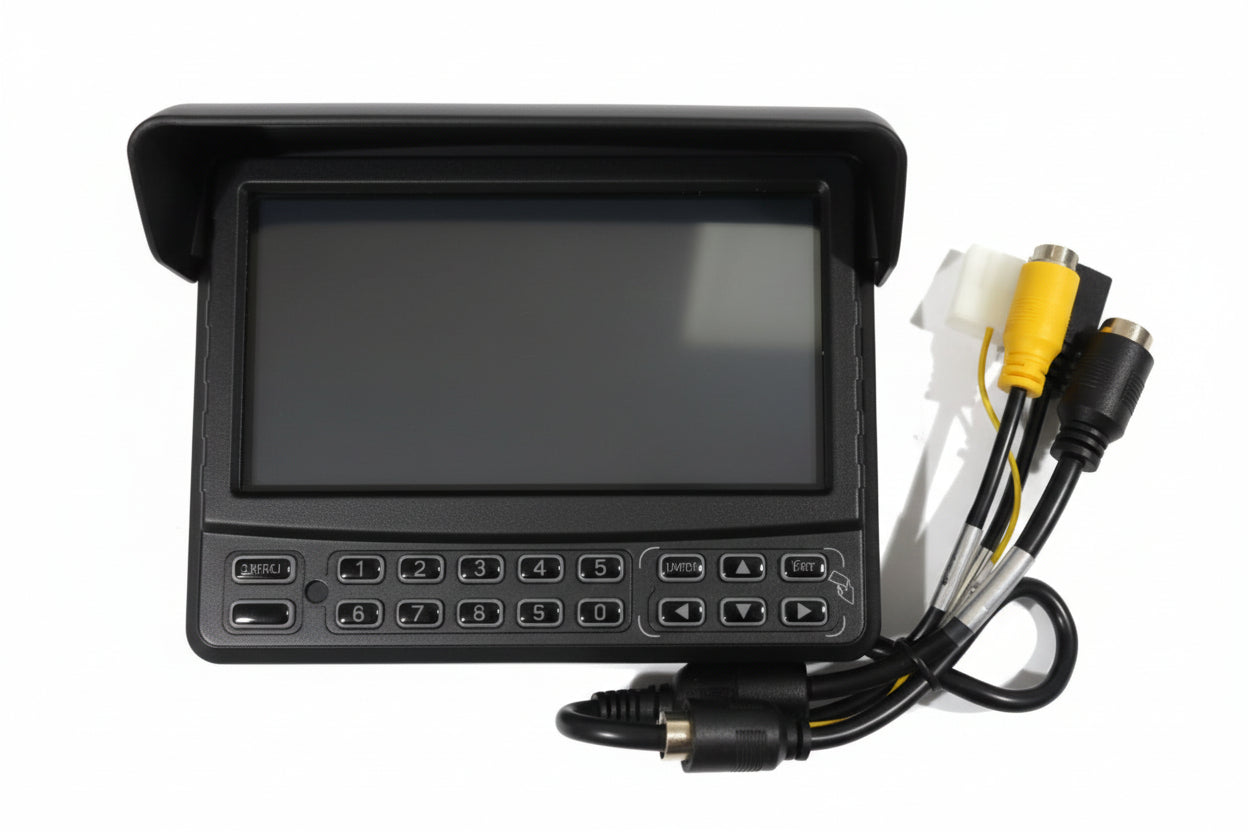

7 Inch Monitor (10 Pin Con, 4 CH)

The FT CP4  7-inch interactive touch screen control panel and monitor specifically designed for mobile CCTV and vehicle telematics systems. It primarily acts as a user interface for  mobile digital video recorders (MDVRs), allowing drivers to manage recordings, view camera feeds, and handle dispatch

Key Features & Functionality
The FT CP4 is commonly used in commercial vehicle fleets, such as buses and trucks, for safety and monitoring.

Multi-Channel Monitoring: While the monitor itself typically features a single 4-pin aviation input for a direct reversing camera, it displays live video from the connected MDVR, which can support 4 or more camera channels. It can display up to 9 camera views simultaneously in various split-screen modes when connected to compatible recorders.

Driver Interface

Equipped with 18 physical buttons and a resistive touch screen, it allows drivers to operate the MDVR menu, perform playback, and trigger emergency recording via an integrated panic button.
Intelligent Dispatching

 Includes a built-in RFID module for driver sign-in/out and supports automated bus station announcements, SMS, and voice broadcasting.
Automatic Reversing View

 When the vehicle is placed in reverse, the monitor automatically switches from standard recording views to a dedicated live reversing camera feed.

Technical Specifications

Display

 7-inch LCD with 800 x 480 (or 800 x 400) resolution.
Audio: Integrated dual speakers (typically 2W or 3W) and a microphone interface for intercom functionality.

Durability Rated at IP53 for dust and water resistance, suitable for dashboard mounting.

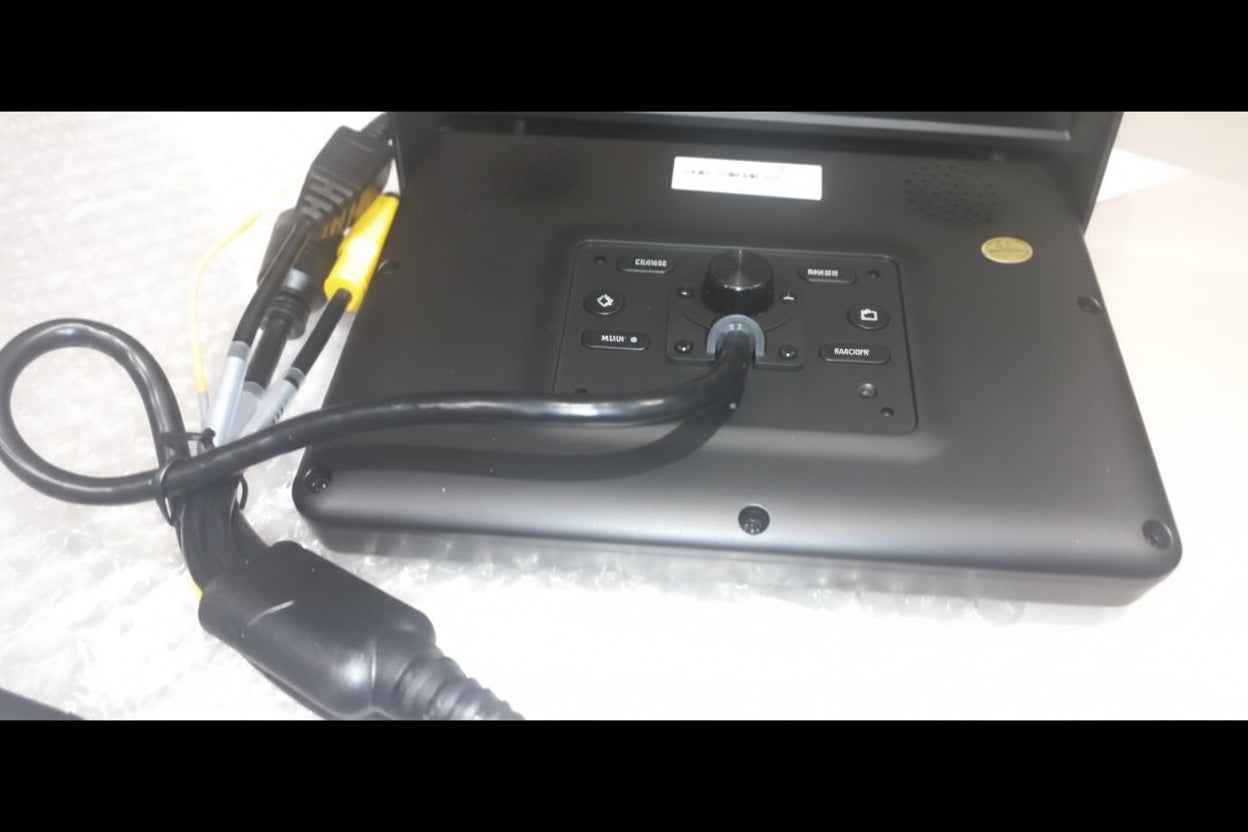

Connectivity: Uses a 10-pin avia

Primary Compatible Systems
The FT CP4 is engineered for specific mobile surveillance ecosystems:
Compatible with the X1N, X3N, X5N, and X7N series DVRS. Connection to X1N or M1N models may require the specific FTCP4-ADAPTER.
Identified as the FT -CP4, it integrates with their range of MDVRs for fleet blind-spot visibility.
