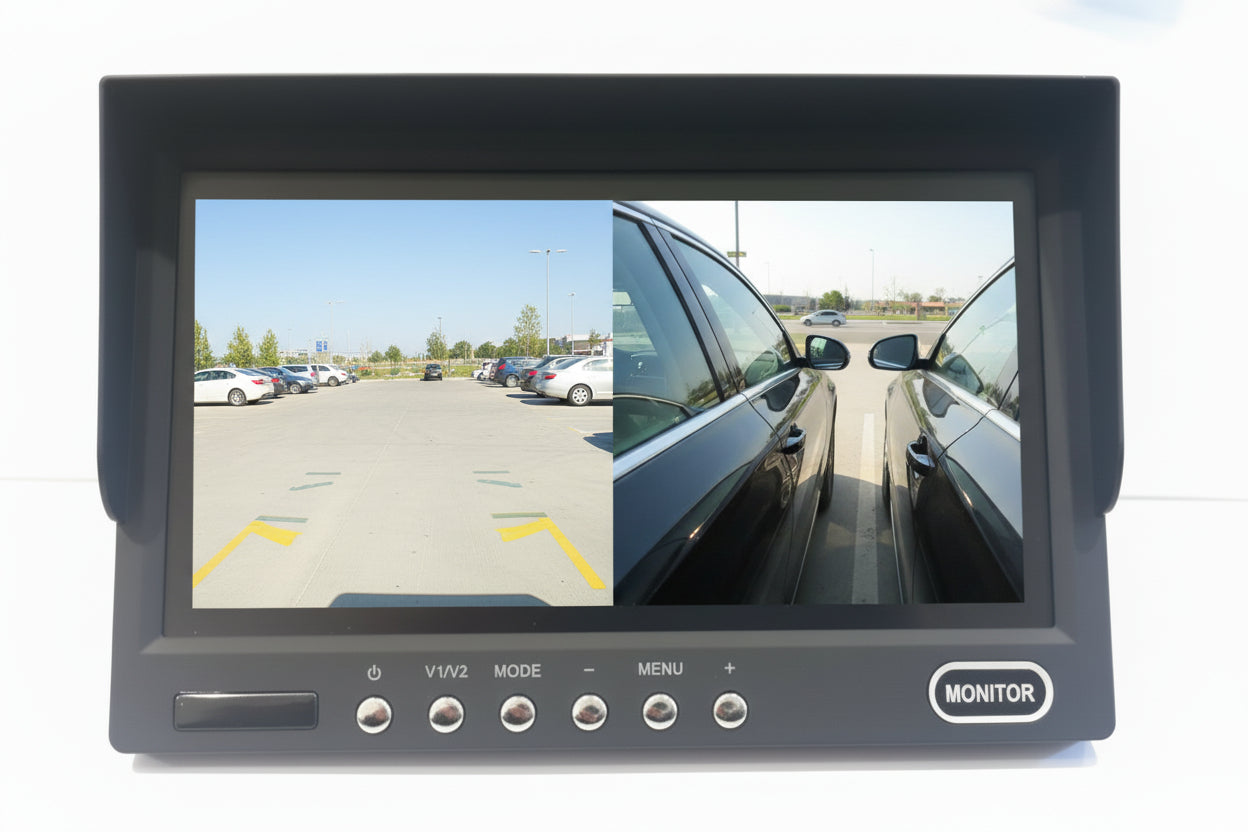

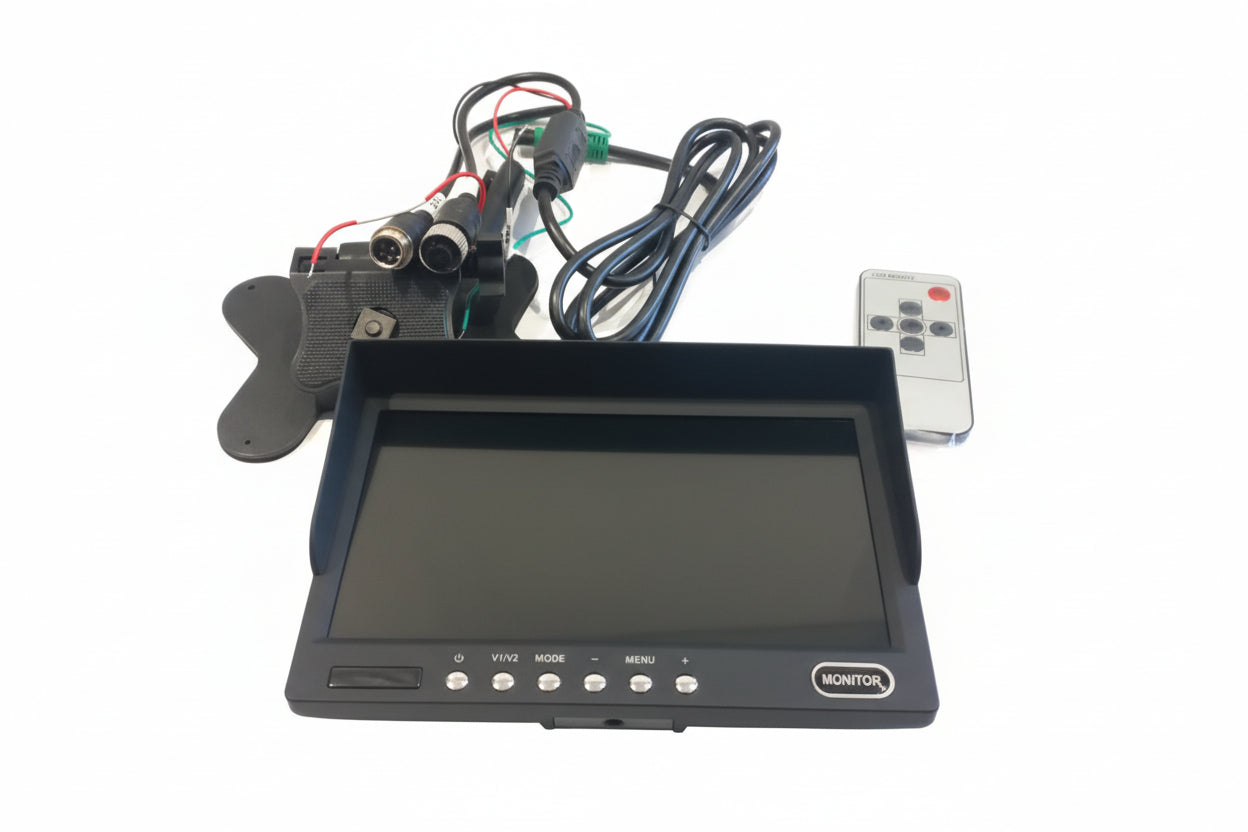

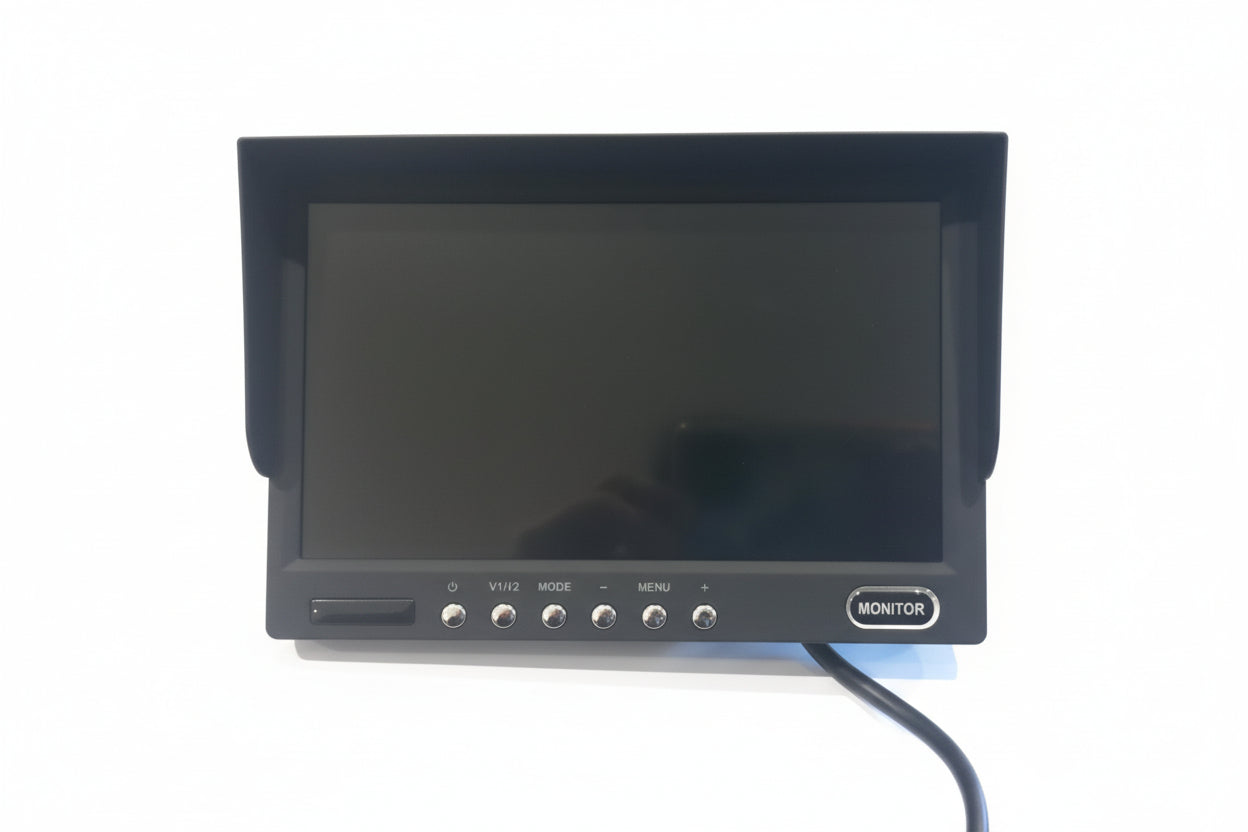

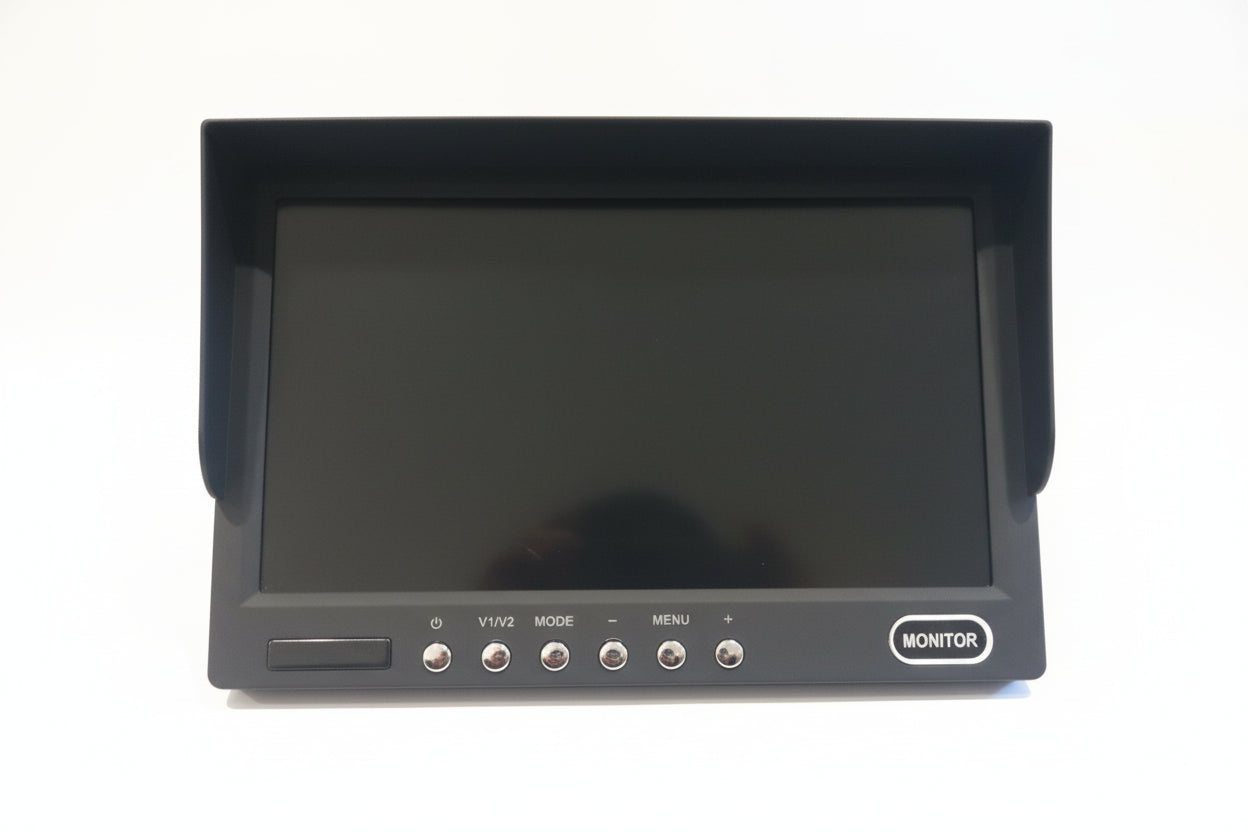

MONITOR 07H – 7" 2CH Monitor+ 1 EXTENDABLE

The MONITOR 07H 7-inch 2-channel monitor is a reliable in-cab display designed for fleet safety and vehicle CCTV systems. Built for commercial vehicles, it supports dual camera inputs, allowing drivers to monitor multiple views such as rear, side, or load areas in real time.

With a clear HD display and rugged design, this monitor enhances driver awareness, reversing safety, and blind spot visibility, making it ideal for trucks, vans, buses, and plant vehicles.

Key Features

• 7” TFT LCD Display – Clear and bright screen for real-time monitoring

• 2 Channel Video Input (2CH) – Connect front, rear, or side cameras

• Split Screen / Quad View Support (model dependent)

• Auto Trigger Function – Automatically switches view when reversing or indicating

• PAL/NTSC Compatible – Works with multiple camera systems

• 12V / 24V Support – Suitable for all commercial vehicles

• Wide Viewing Angle Display – Easy visibility in all lighting conditions

• Compact & Durable Design – Built for heavy-duty fleet environments

Specifications

• Screen Size: 7 Inch

• Resolution: Approx. 800 × 480 / 1024 × 600 (model dependent)

• Video Input: 2 Channels (AHD/CVBS supported)

• Power Supply: DC 12V–24V

• Operating Voltage Range: 9V–32V

• Brightness: 300–350 cd/m²

• Operating Temperature: -20°C to +70°C

• Mounting:  bracket mount

• Display Mode: Single / Split view
