7" AHD Quad Monitor 4Channel IPX Screen

This is a vehicle CCTV / camera monitor designed for trucks, vans, buses, and plant machinery. It supports 4 camera inputs and displays multiple views simultaneously.

A high-quality 7-inch vehicle monitor that connects up to 4 cameras, allowing drivers to view multiple angles (rear, side, front) on one screen. Ideal for improving safety and visibility in commercial vehicles.

• Screen Size: 7-inch LCD (16:9 widescreen)

• Resolution: Typically 1024 × 600 HD

• Channels:

  • 4CH AHD camera inputs (quad view)

  • Supports 720P / 1080P / CVBS formats

• Display Modes:

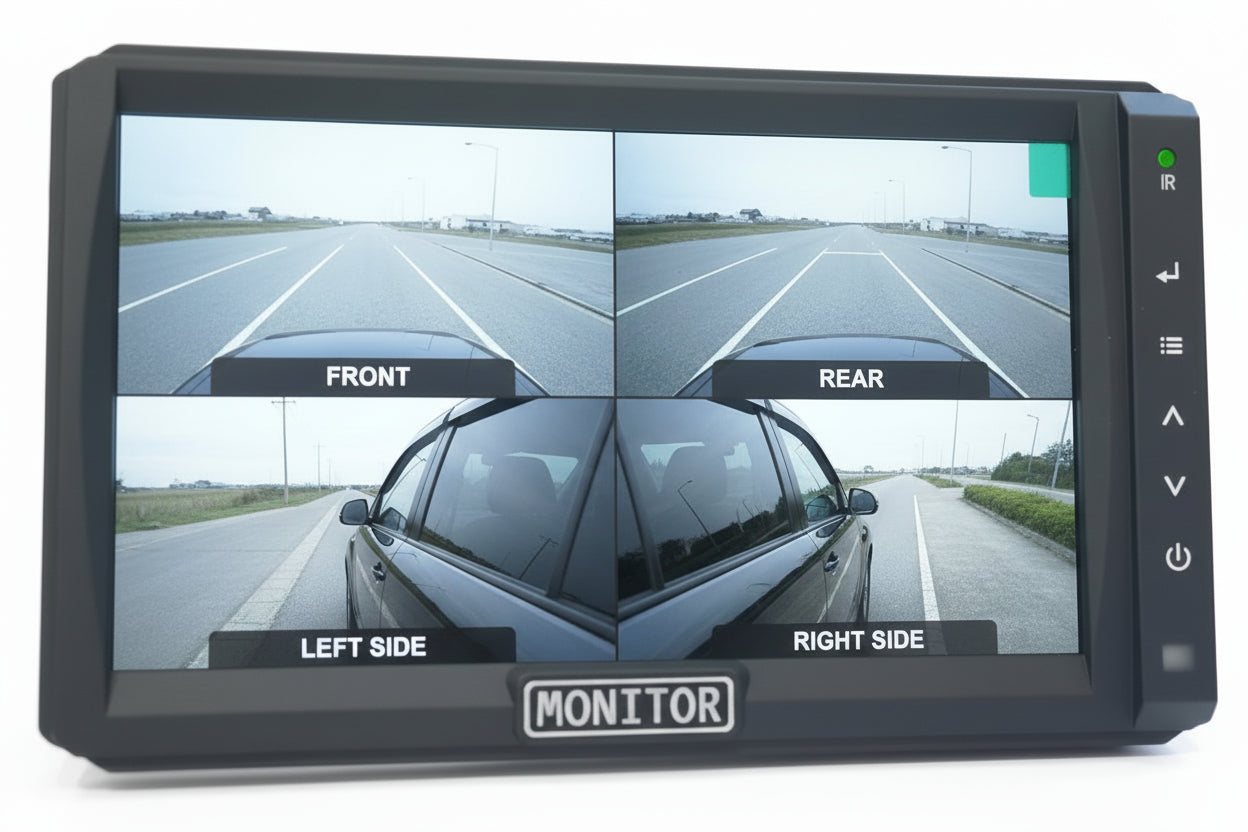

  • Single / Split / Quad screen viewing

• Trigger Inputs (4T):

  • Auto-switch display when reversing or indicators are used

• Video Connectors:

  • 4-pin aviation connectors (common for vehicle CCTV)

• Power Supply:

  • DC 9–36V (suitable for 12V & 24V vehicles)

🚚 Typical Use Cases

Reversing camera systems

Fleet vehicles (HGV, buses, vans)

Construction / agricultural machinery

360° vehicle monitoring setups

Common Extra Functions

Depending on exact variant, may include:

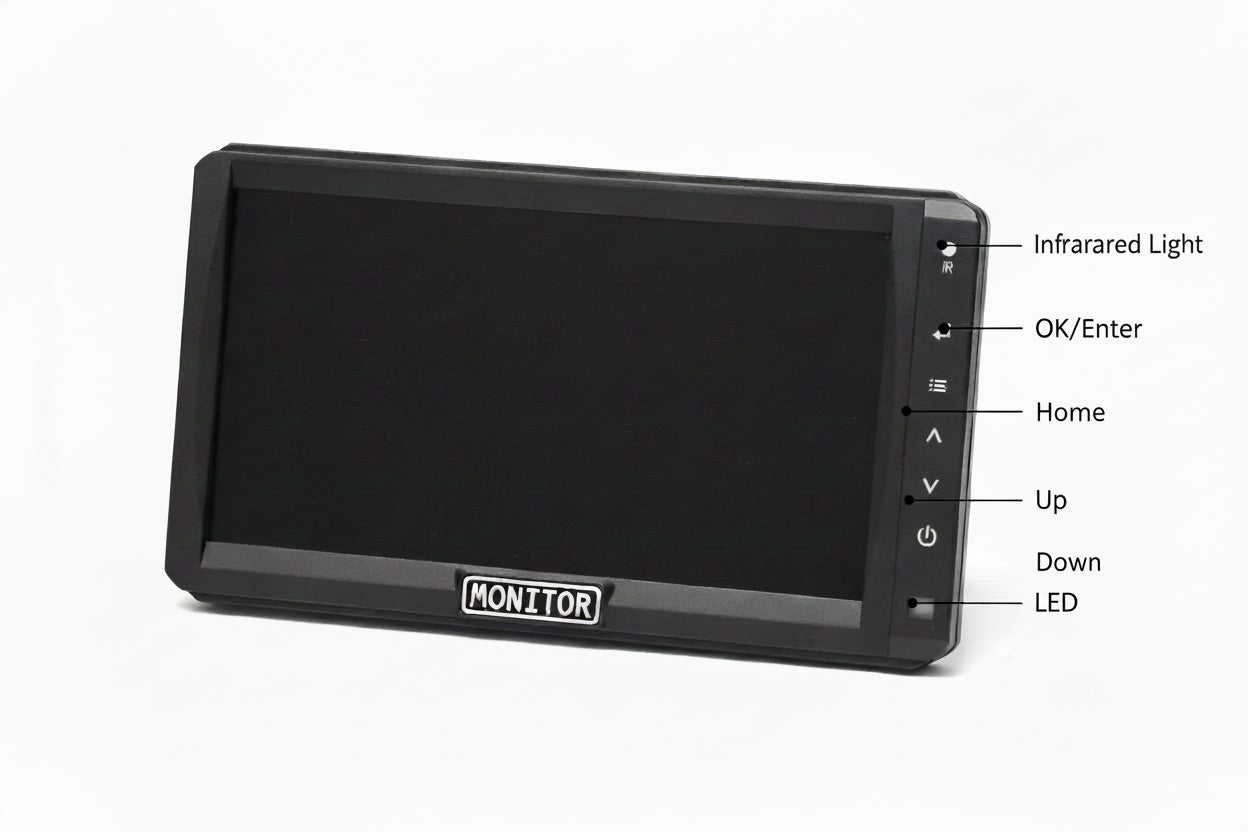

• Touch buttons or remote control

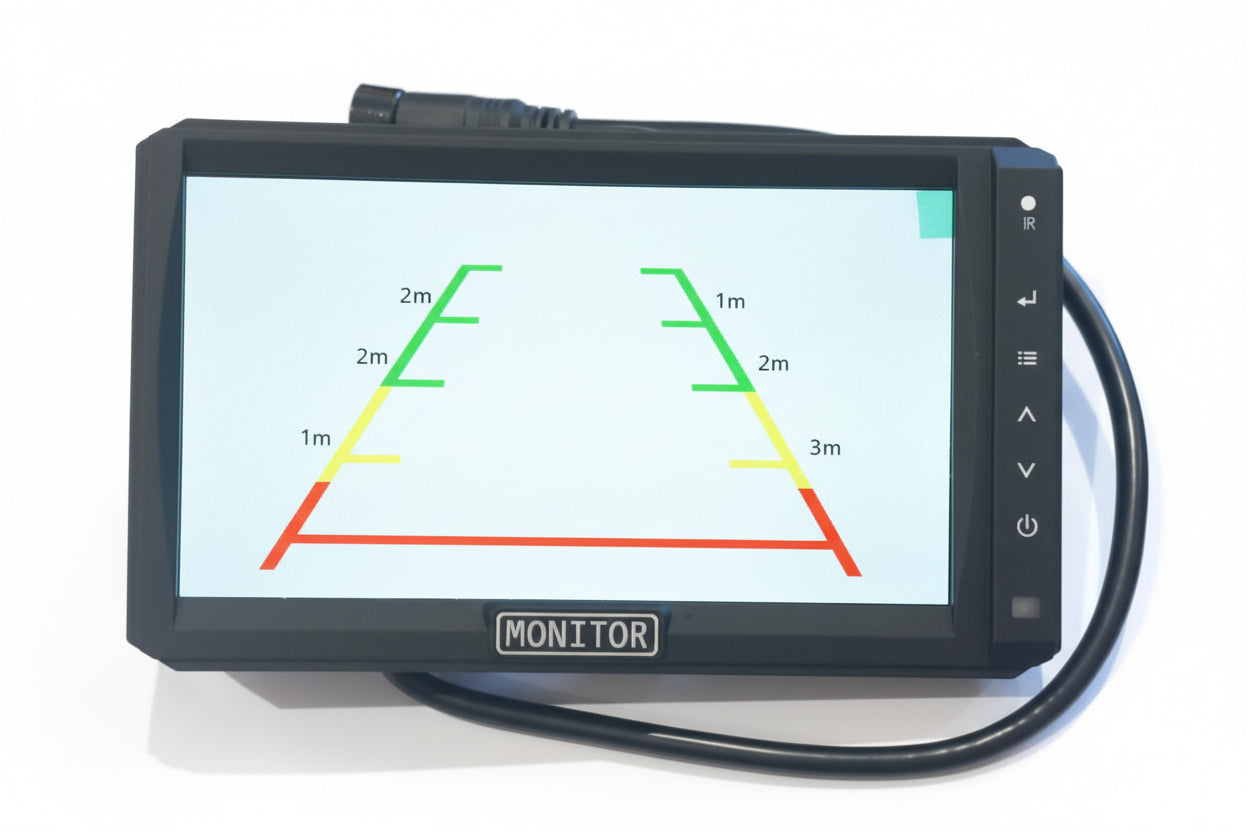

• Adjustable parking guidelines

• Mirror/flip image settings

• Sunshade for glare reduction

• Audio input (some models)
